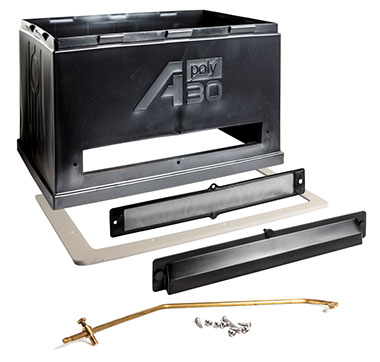

Package contents
POLYTANK PolyA30 chamber with weir
PolyA30 seal
10 SS screws
J4 insulation

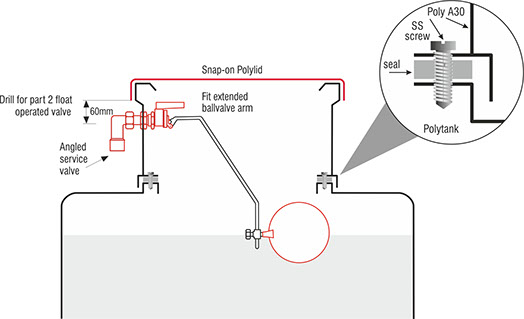

Extended arm
Fixing instructions
Polytank A30 is designed to accommodate a maximum flow rate of 62 litres/minute (i.e. BS1212 part 2 float operated valve with a No. 9 - 9.5mm (3/8" bore seat)
A maximum float size of 178mm (7") can be accommodated.
ADDITIONAL COMPONENT KITS COMPLY WITH BS4213.2004
handling
All plastic products should be handled carefully at all times to ensure long trouble-free life. Polytanks have been specially designed for strength and look, and are very robust, but they can be damaged.
on-site test
Always carefully test to avoid embarrassment. With multi-handling of the Polytank from manufacturers to merchants to plumber to site to cupboard or loft, it is inevitable that occasionally a tank will be damaged.
insulation
Always fit insulation, it is part of your PT2 package, which ensures your Polytank will deliver good quality drinking water to your taps, and meet all the requirements of British Standards.
important
Ensure warning pipe accommodates incoming supply. Fit restrictor to inlet if necessary.
MAX. DIMENSIONS before fixing
LENGTH
WIDTH
HEIGHT
MM
375
245
230
INCHES
15
10
9
ORDER CODE
XPA30

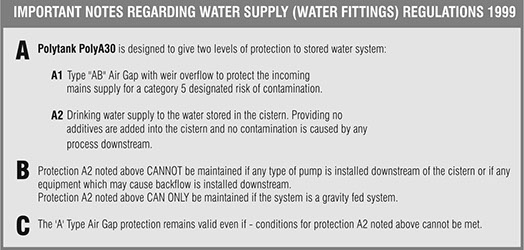

incorporating

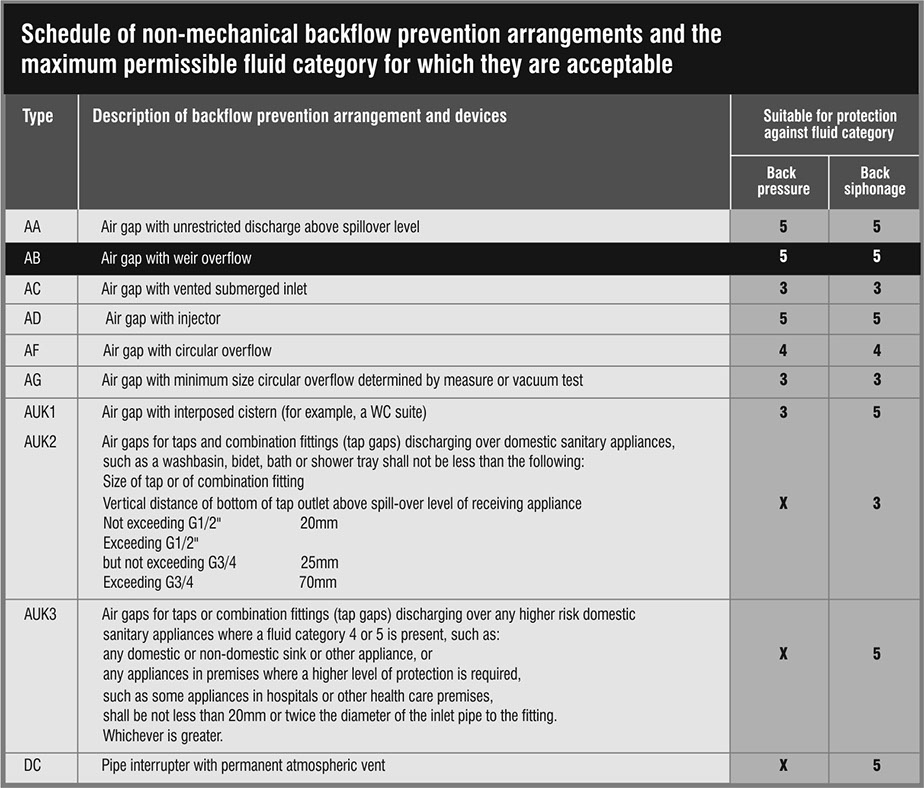

type AB Air Gap*
*Type ‘A’ AIR GAP where demanded
Converts all Polytanks to meet
legislation
Polytank products
Polyoil products
